SMA Female PCB Mount Connector 50Ω 2700V Max Brass

Product Categories

Shenzhen Anzewei Technology Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : OTW

Model Number : SMA-KE-16.5

Place of Origin : China

MOQ : 50pcs

Price : 0.05-0.39

Payment Terms : T/T, Western Union

Supply Ability : Above US$100 Million

Delivery Time : 7-10working days after receiving the payment

Application : PCB mount Connector

Country of Origin : CHINA

Description : Female PCB mount Connector

Material : Brass

Working Voltage : 2700V max

VSWR : 1.10:1

Impedance : 50Ω

Contact Now

2700V Max SMA Female PCB Mount Connector 100m/s2 50 OHM

Product descriptions from the supplier

Application:

● PCB Mounting Wifi Antenna Connector

● RF signal connection

Features:

● Enhanced electrical conductivity ● Oxidation resistance, corrosion resistance, environmental protection and safety

● Gold ion plating ● Stable performance and strong durability ● High reliability, long life

Product performance
Model	SMA-KE-16.5
Vibration	100m/s2 (10~500Hz)
Impedance	50 OHM
Frequency Range	DC – 11GHz
Working Voltage	2700V max
Break-down Voltage	4000V rms @ sea level
Contact resistance	≤0.4 OHM @ inner contact ≤1.5 OHM @ outer contact
Average power	3KW max
Insulation resistance	≥10000M OHM
VSWR	≤ 1.10
Durability (mating)	≥500 (cycles)
Temperature range	-40~+85°C
Material	Brass

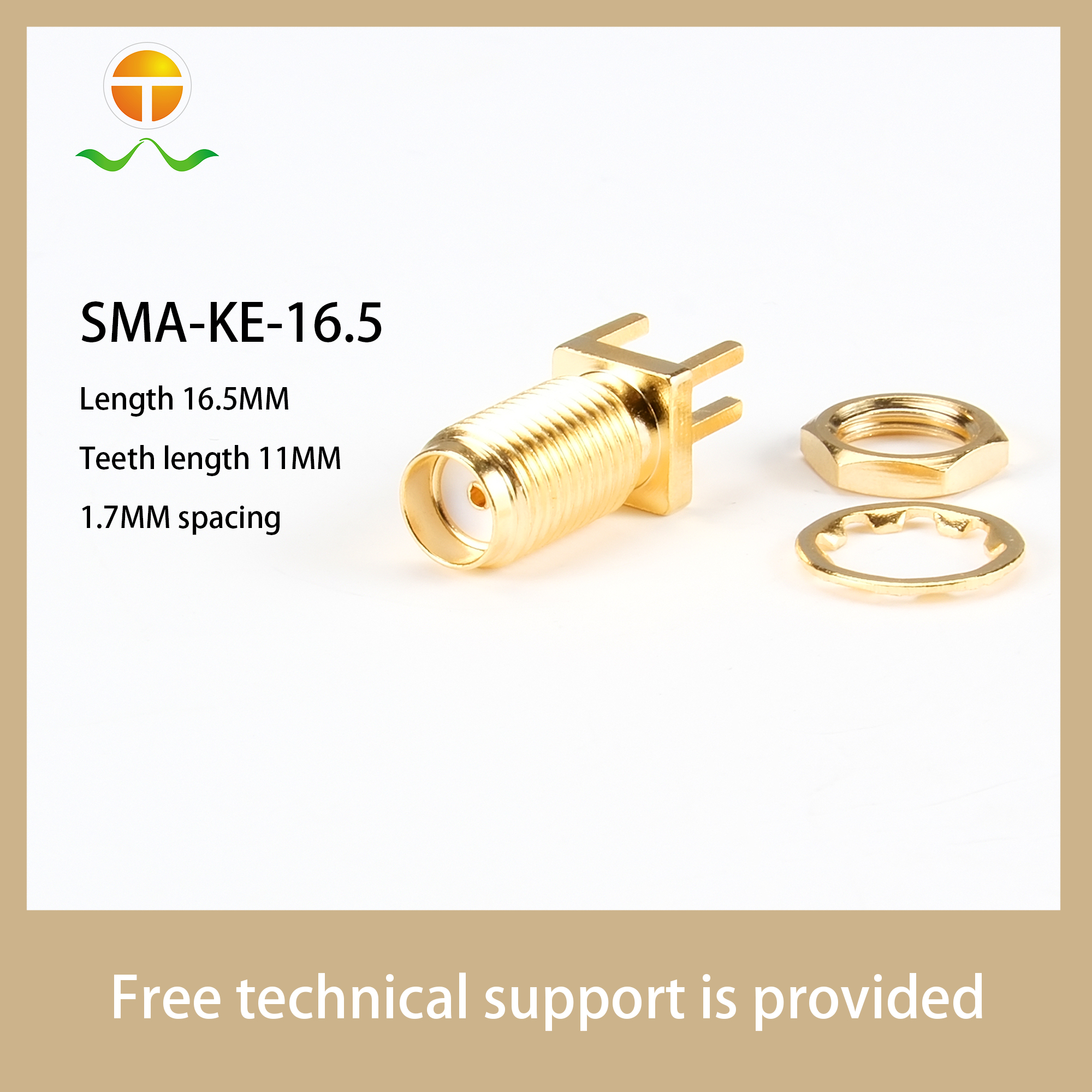

Size	Leg length 16.5MM Teeth length 11MM 1.7MM spacing
